Bedrock Elite i10 class 1 acoustic measuring instrument

Why choose bedrock elite?
At Bedrock Elite, our products are designed and built by acousticians and field engineers who use these tools daily. Our mission is to save you time by creating easy-to-use, precise instruments perfect for any acoustic measurement task. As a Bedrock Elite customer, you benefit from the features we’ve always wanted for ourselves, plus enhancements requested by thousands of satisfied users since 2010.
Key benefits
High standards, friendly prices
We match the quality of top European brands at more competitive prices, our meters are manufactured in the Netherlands. (COO NL).
All-inclusive modules
All our modules, including future updates, come free of charge. No hidden fees or costly upgrades.
User-centric design
Intuitive interfaces and robust hardware ensure reliability and ease of use in any environment.

About the i10
The Bedrock Elist i10, our flagship instrument, is engineered for versatility and precision. Its new hardware platform offers superior specifications, including a high-resolution capacitive touch display, enhanced battery life, and efficient power management.
Wireless connectivity
Bluetooth and Wifi
Seamlessly connect to your i10 over various distances.
Headset Compatibility
Listen to measurements and record voice annotations through your headset.
Advance features
Dual Input Channels
For complex measurement types.
Internal Signal Generator
Ideal for STI testing and frequency transfer measurements.
On-Device Operation
Perform complex measurements directly on the device, no PC required.

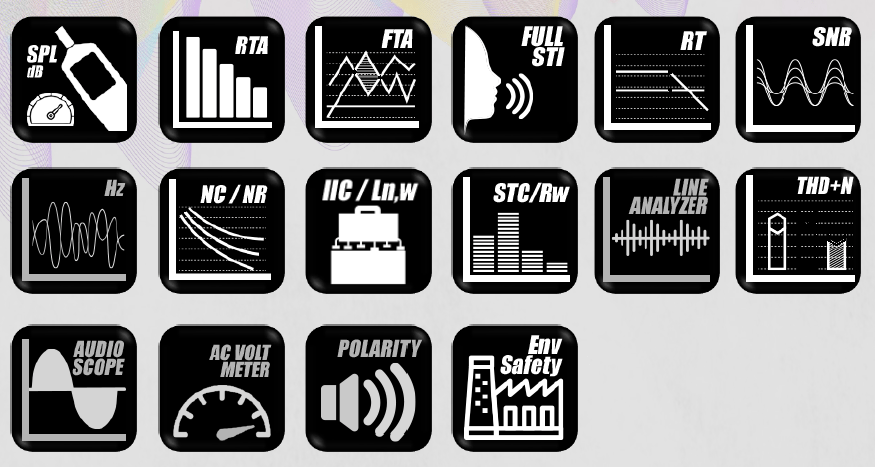

Comprehensive Module List
The i10 is equipped with an extensive range of modules, all included as standard.

For acoustic consultants
- SPL Meter (A/C/Z, fast, slow, impulse, eq. continuous)
- Real-Time Analyzer (1/1, 1/3, 1/6, 1/12 octave resolution)
- FFT Analysis
- Speech Intelligibility (Full STI and STIPA)
- Reverberation Time (RT60)
- Statistical Acoustics
(percentiles) - LEQ Logging (A/C/Z)
- Noise Curves (NR/NC)
- Sound Insulation (R’/DnT).
- SRI / STC
- Calibrated Audio Recording
- Built-in Signal Generator (STI, noise, sines, sweeps)
For professional audio users
- Real-Time Analyzer (1/1, 1/3, 1/6, 1/12 octave resolution)
- Speech Level Meter
- FFT Analysis
- Oscilloscope
- AC Volt Meter
- Fundamental Frequency (First
Harmonic) - Loudspeaker Polarity
- Calibrated Audio Recording Built-in Signal Generator (STI, noise, sines, sweeps)
For electro Acoustics users
- Oscilloscope
- AC Volt Meter
- THD+N
- Fundamental Frequency
- FFT Analysis
- Loudspeaker Polarity
- Calibrated Audio Recording
- Built-in Signal Generator (STI, noise, sines, sweeps)
Technical specification
Linear range of electronics: >118 dB
Self noise (without microphone/preamp): <14 dB(A)
Self Noise (with microphone/preamp): <20 dB(A)
STI Module: fully compliant with IEC-60268-16 rev
Type/ Class: Type 1 / Class 1 SPL measurements compliant with ANSI S1.4 and IEC-61762-1:2014
Functional specification
Touch Screen: 4″ full-color capacitive LCD
Internal Storage: 32 GB internal storage (30 GB for measurement data and audio)
Connectivity: USB-C for data transfer, charging, and remote control
Microphones Compatibility: Includes a Type 1 / Class 1 measuring microphone; works with any 48V XLR microphone
Battery Life: 5-8 Hours per charge
Calibration: Simple, precise calibration process
Accesories
Ruggedized carrying case Microphone
Mic diffuser ring
USB-C cable
Carrying cord
Quickstart guide
Calibration certificate
USB flashdrive with test signals and manual
Foam windscreen
