Human Vibration analyzer VM31 MMF

Vibration Analyzer Applications

● Versatile tool for vibration measurement during product development and for health and safety at the workplace to EU and International standards

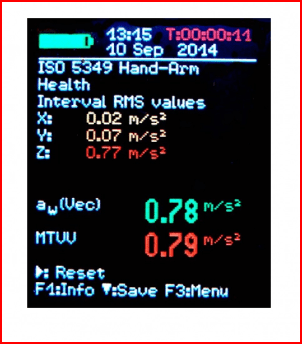

● Measurement of hand-transmitted vibration

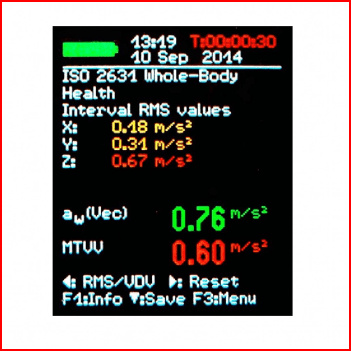

● Measurement of whole-body vibration

● SEAT measurement at driver seats

● Vibrations on passenger and merchant ships

● Condition monitoring of rotating machinery in three axes

● Vibration measurement in vehicles

● Supported standards: ISO 8041; ISO 2631; ISO 5349; ISO 10326; ISO 20816; ISO 20238-5; ISO 28927; ISO/TR 18570; 2002/44/EC

Properties

● Four independent measuring channels

● Weighting filters to ISO 8041 Wh for hand-arm vibration and Wb, Wc, Wd, Wj, Wk, Wm for whole-body vibration

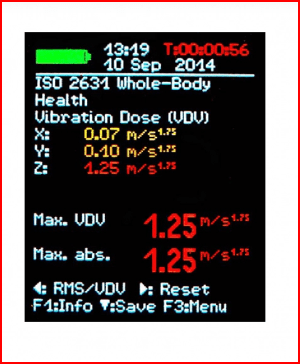

● Interval and running RMS, maximum RMS (MTVV), vibration dose value (VDV), vector sum, peak and maximum peak

● Measurement of vibration acceleration, velocity and displacement

● FFT of acceleration with 125 lines

● TEDS sensor detection

● Memory for 10000 measurements and 1000 FFTs with date and comment

● USB interface

● Excel macro included for data transfer and calculation of daily exposure A(8)

● Clear user guidance with colored OLED

● Very compact design

● 10 hours operation with 3 Micro (AAA) batteries

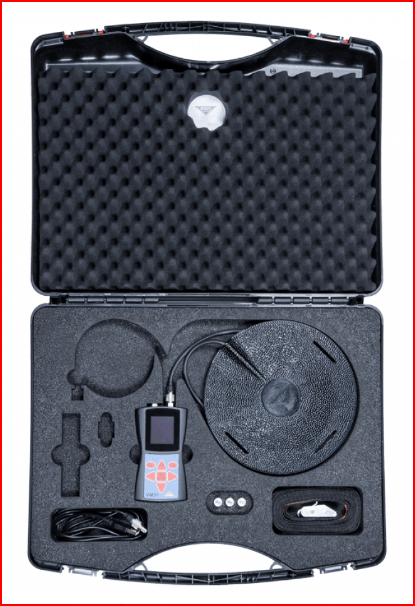

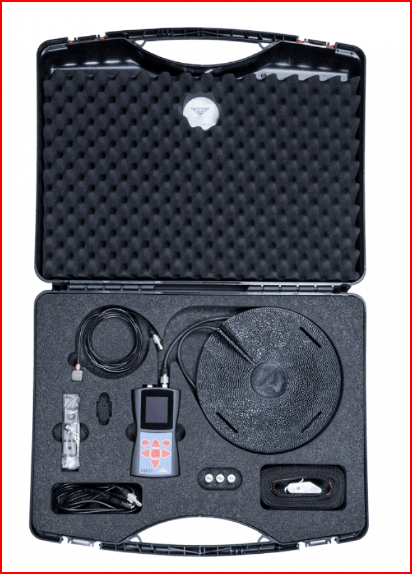

● Available as hand-arm kit and whole-body kit including suitable sensors and accessories
